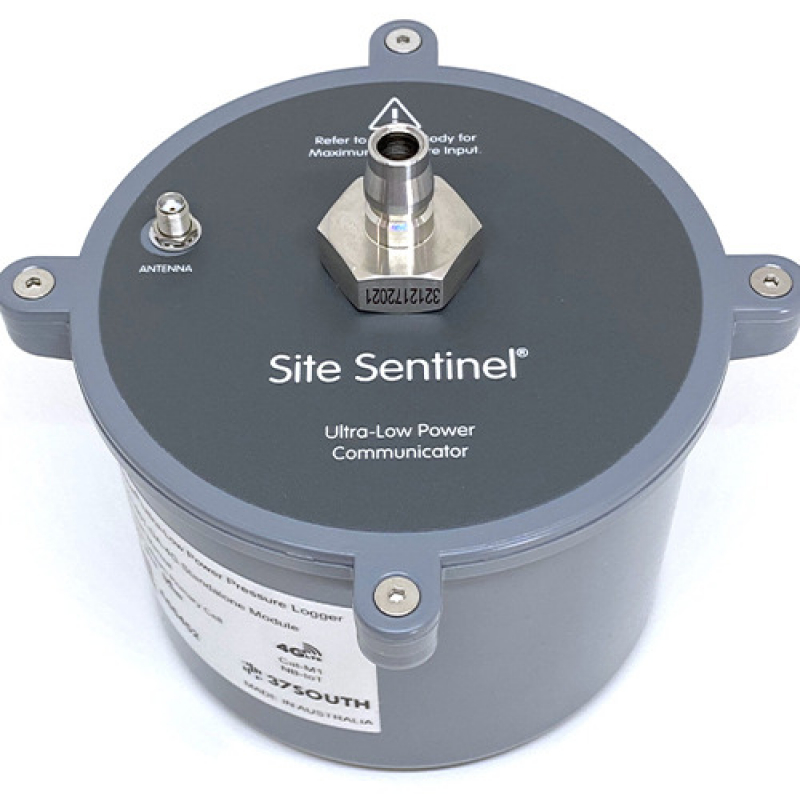

Site Sentinel Z1-001 - Ultra low power, Cellular data logger with integrated pressure sensors
-
Sold by ConnectM2M Ltd
Description
The Site Sentinel® Z1 is designed for direct connection to customer taps or water mains for the purpose of temporary or permanent pressure measurement for zone monitoring or analysing customer water pressure complaints. The Site Sentinel® Z1 is also ideal for temporary deployment for use in calibrating water models. Swift deployment is made possible thanks to the built-in front panel mounted pressure sensor equipped with quick-connect bayonet style fitting.
Data is storedinternally on non-volatile flash memory with upstream communications provided using an internal 4G cellular modem, permitting use on 4G CAT-M1 and NB-IoT networks worldwide. Host compatibility is ensured with integrated support for DNP3.0 slave and FTP data protocols. Complete control is handed to the user to allow custom data reporting and wake-from-sleep regimesto be configured to balance batterylife against data logging and data reporting requirements.
Remote configuration and device management is supported via leading industry SCADA applications, remote device firmware download capability is provided via FTP file transfer, permitting device configuration and upgrades without requiring site visits.
The device is housed in a low-profile, robust ABS-plastic enclosure that is UV stabilised and rated at IP68, allowing for direct outdoor installation, capable of withstanding submersion to a depth of four metres for four continuous days.
The device is housed in a low-profile, robust ABS-plastic enclosure that is UV stabilised and rated at IP68, allowing for direct outdoor installation, capable of withstanding submersion to a depth of four metres for four continuous days.Specifications
Approvals
- Build: RoHs
- Production: Proudly made in Australia
- Standards: RCM (AUST/NZ), EMC compliance, other export standards on request
Factory Accessories
- Optional Accessories: A comprehensive range of factory manufactured or sourced accessories to ensure reliable and swift solution deployment. Visit 37s.com.au
- Standard Accessories: Each device is supplied with a battery, stainless steel quick release mounting bracket and installation accessories kit
General
- Current Draw: 50 µA sleep, 5 mA active, 200 mA cell communications, 2 A (peak) cell network detect, (measured at 3.6V DC)
- Environmental: IP68 (4 metres depth/ 4 days duration)
- Mounting: 90 mm (h) x 125 mm (d, nominal) / 155 mm (d, maximum), supplied with stainless steel mounting bracket and installation kit that includes O-rings, O-ring grease and Antenna
- Programming: Windows based Configurator M+ configuration software, Remote device management via DNP3, Remote firmware download via FTP, local programming port, live local diagnostics
- Real Time Clock: Internal – Year, month, day, hour, minute, second, Automatic DNP3 time synchronisation from DNP3 master, Automatic cellular network time sync when using FTP data export mode
- Supply Voltage: 3.5 – 8.5V DC, High-capacity, internal Lithium battery pack (field replaceable)
- Temperature: –20°C to +85°C Celsius
IO Interfaces
- Analogue Input: 1 x Integrated Pressure Port, Bayonet Quick Connect Coupling fitting, sensor constructed from 316L stainless steel. 0-16 Bar Measurement Range, +/- 0.25% Accuracy, Compensated temperature range is 0°C to +60°C. 16 bit resolution, Piezo-Resistive type Stra
- Data Logging and Event Buffering: User Configurable Data Logging regimes from once per day down to 1 second time stamped resolution interval. Up to 2,000 time stamped events, event buffer discards newest data when full, user configurable to automatically upload event logs when buffer full
- System Input: Internal measurement of Cell Network RSSI, RTU temperature, RTU battery voltage and session status code, Magnetic swipe function to initiate data transmission to upstream hosts
Telemetry
- 4G Cellular: Supports World-wide 4G/LTE Cat-M1 / NB-IoT Bands: B1, B2, B3 (1800 MHz.), B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28 (700MHz.), B66, B71, B85. Class 3 Output Power (+23dBm)
- Antenna: Internal antenna / External SMA Female connector (user selectable)
- Data Protocols: DNP3.0 Slave (unsolicited mode), FTP data export
- Host Support: True TCP support to DNP host (supports three Master IP addresses)
- Security: CHAP or PAP authentication, SIM credentials, configurable username, password and APN, built in IP firewall, 512-Bit AES Encrypted firmware download
- SIM Card: 1.8 and 3V UICC (Standard size SIM card)
