Description
The device for accurate, reliable biogas measurement with loop-powered technology.
Benefits:
- Integrated real-time methane fraction measurement.
- Optimized for low pressure gas – specialized sensor design.
- No additional pressure loss – full bore design.
- Process transparency – diagnostic capability
- Convenient device wiring – separate connection compartment
- Safe operation – no need to open the device due to display with touch control, background lighting
- Integrated verification – Heartbeat Technology
Field of application:

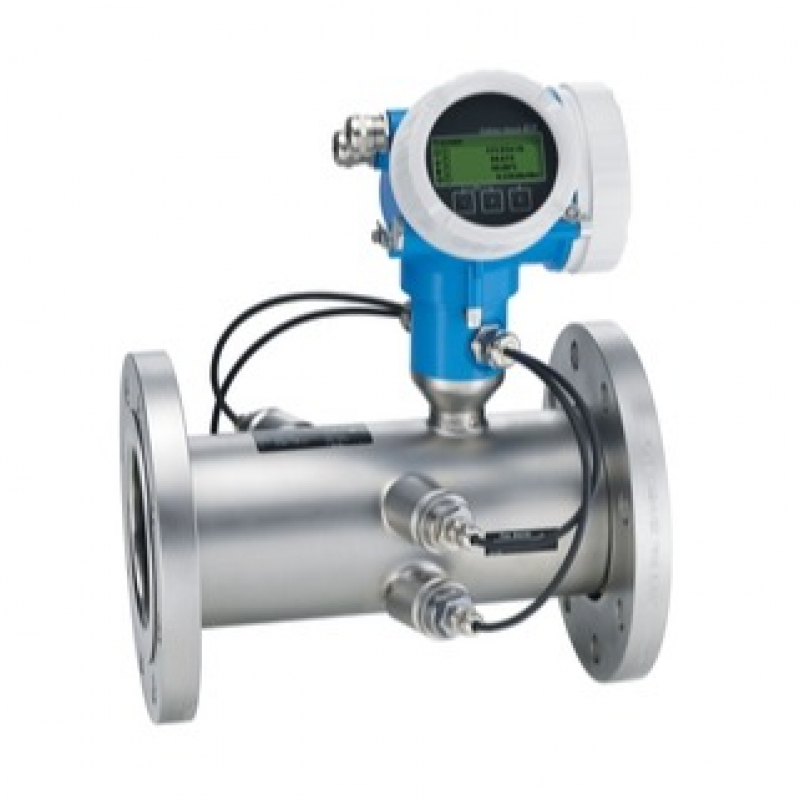

Prosonic Flow B 200 is the specialist for accurate and reliable measurement of wet biogas and digester gas,even under fluctuating process conditions. With its unique integrated real-time methane fraction analysis, Prosonic Flow B 200 enables continuous measurement and monitoring of gas flow as well as gas quality. In Proline Prosonic Flow B 200 / 9B2B addition to efficient process control and energy balancing, Heartbeat Technology enables compliance and process safety at all times.
Specifications
- Max. measurement error: Volume flow (standard): ‐ ±1.5 % o.r. for 3 to 30 m/s (9.84 to 98.4 ft/s) ‐ ±3 % o.r. for 1 to 3 m/s : (3.28 to 9.84 ft/s) Volume flow (option): ‐ ±0.1 % o.f.s. for 0.3 to www.endress.com/9B2B 1 m/s (0.98 to 3.28 ft/s) ‐ ±1.5 % o.r. for 1 to 30 m/s (3.28
- Measuring range: Standard: 1 to 30 m/s (3.28 to 98.4 ft/s) Option: 0.3 to 30 m/s (0.98 to 98.4 ft/s)
- Medium temperature range: 0 to +80 °C (+32 to +176 °F) • Max. process pressure 11 bar a (159 psi a)
- Wetted materials: Sensor: 1.4404/1.4435 (316L) Transducer: HNBR Temperature sensor (option): AFM 34
