Description

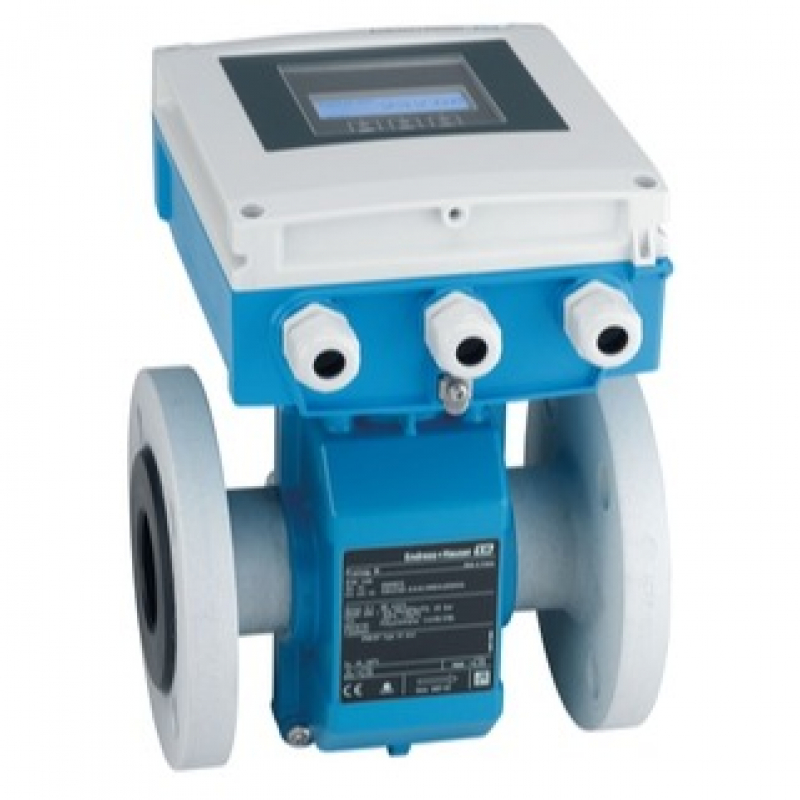

Versatile standard flowmeter for the water and wastewater industry.
Benefits:
- Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss.
- Flexible engineering – sensor with fixed or lap-joint process connections.
- Application fitness – EN ISO 12944 corrosion protection for underground or underwater installation.
- Improved plant availability – sensor compliant with industry-specific requirements • Safe operation – no need to open the device.
- Time-saving local operation without additional software and hardware – integrated web server.
- Integrated verification and build-up detection – Heartbeat Technology :
Field of application:
With its international approvals for custody transfer as well as drinking water, Promag W serves the broadest variety of applications. It is available as both compact or remote version. Promag W 400 saves time and costs thanks to the broad functionality of its transmitter optimized for Water & Wastewater. In addition, Heartbeat Technology enables measurement reliability and compliant verification.
Specifications
- Max. measurement error: Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec • Measuring range 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)
- Max. process pressure: PN 40, Class 300, 20K
- Medium temperature range: Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (– 4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
- Wetted materials: Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194 °F) Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum Proline Promag W 400
