Description

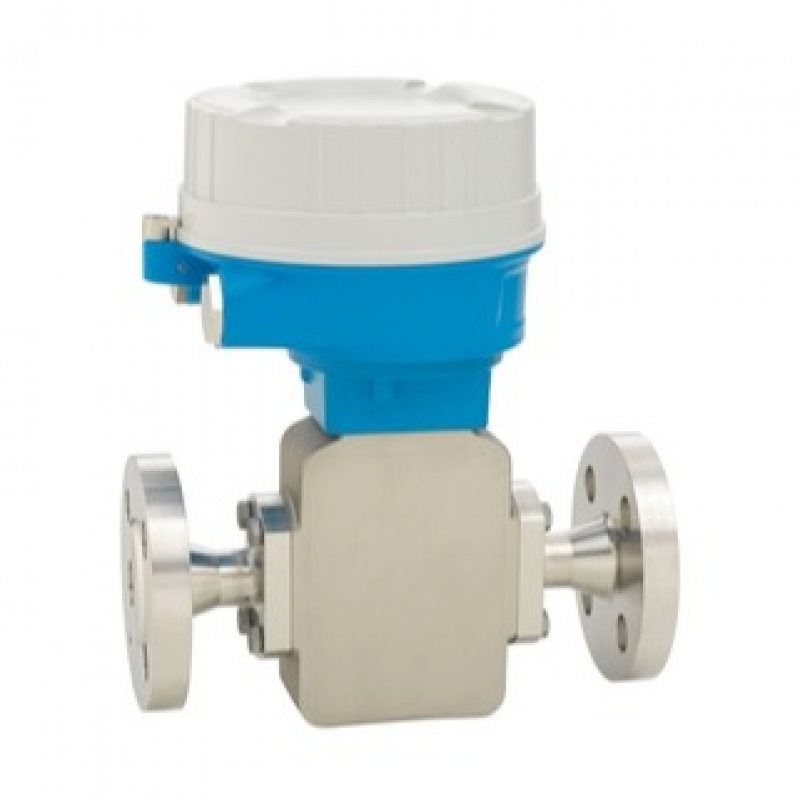

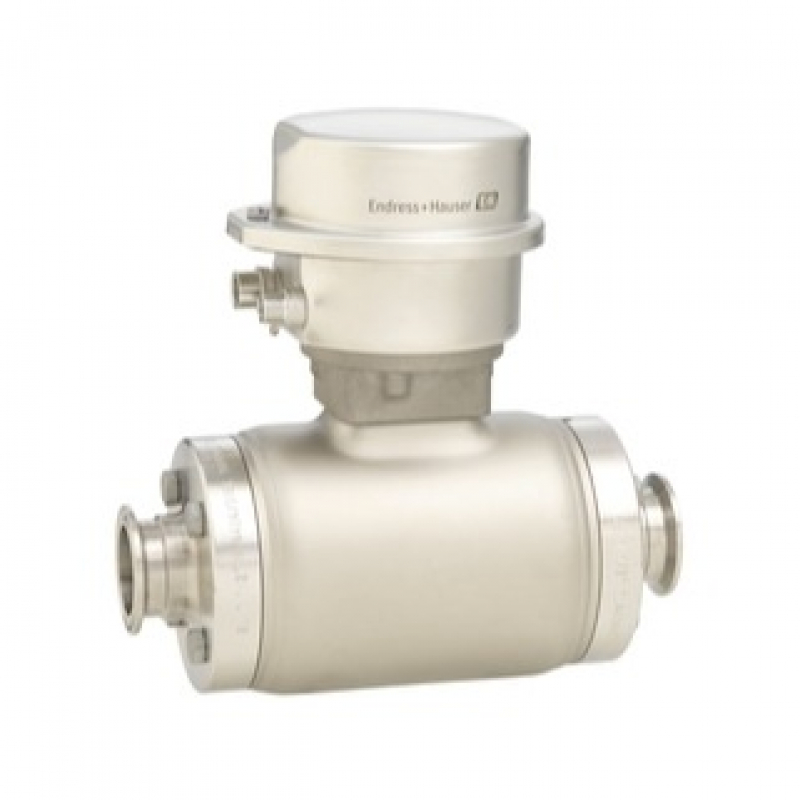

Specialist for hygienic applications, as remote version with up to 4 I/Os.
Benefits:
- Multivariable measurement for flow, temperature and conductivity.
- Flexible installation concept – numerous hygienic process connections.
- Energy-saving flow measurement – no pressure loss due to cross- section constriction.
- Maintenance-free – no moving parts.
- Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet.
- Reduced complexity and variety – freely configurable I/O functionality.
- Integrated verification – Heartbeat Technology
Field of application:
Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its innovative remote transmitter Promag H Proline Promag H 500 / 5H5B 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables compliance and process safety at all times.
Specifications
- Max. measurement error: Volume flow (standard): ±0.5 % o.r.± 1 : mm/s (0.04 in/s) Volume flow (option) ±0.2 % o.r. ± 2 mm/s www.endress.com/5H5B (0.08 in/s)
- Max. process pressure: PN 40, Class 150, 20K
- Measuring range: 0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min)
- Medium temperature range: –20 to +150 °C (–4 to +302 °F)
- Wetted materials: Liner: PFA Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone) Grou
